Agenda

what we're doing today:

~Welcome & Introductions
~Course Overview & Housekeeping
~Environment Setup
~HTML & CSS Fundamentals
~Dev Tools: Using the Inspector
~Class Exercise I
~Intermediate CSS: Animations & 3D
~Class Exercise II
~Homework

Welcome to Gray Area

💻 🎨 👾 🎹

Introductions

tell us about yourself

~Name
~Pronouns
~Where you are from
~What are you excited to learn/create here?
or
~One unusual skill?

Housekeeping

How to get help & ask questions

Class blog: website
Email: david.e.sasson@gmail.com
Element Chat: @dsasson | 2022.2 Creative Code Intensive
Office hours: by appointment!

Course Overview

Week 1: Web Skills
Week 2: Javascript I
Week 3: P5.JS
Week 4: Physical Computing I
Week 5: Node.js
Week 6: Web Audio (Sound Art)
Week 7: 3D for the web
Week 8: Projection Mapping
Week 9: Physical Computing II
Week 10: Interactive Environments

Course Overview

Development Week(s)
Showcase: 2/9/2023

Course Overview

what this class isn't: A PSA

~In this class we won't cover working with frameworks like React, Vue, Angular
~In this class you will learn the web fundamentals required for upcoming classes

The Internet

ooooh

~What is it?
~What does it look like?
~Draw it!

The Internet

ooooh

~pair & share
~how do your takes differ?

The Internet

What is it?

The Internet

Diagram of the internet

The Internet

It's for humans

How do we move forward?

On your note card:

On a scale of top to bottom
~What is your comfort with code/technology?
~What is your comfort with creative pursuits?
What do you wish for the internet?
What do you need to feel successful in this class?

Environment Setup

if you have not already done so:

~Install a modern web browser (Chrome or Firefox preferred)
~Install a text editor (e.g., Atom, Sublime, VS Code)

Code

Download it here

~Then open the directory in your editor of choice

HTML

HyperText Markup Language

~HTML defines the structure and presentation of our web page
~We write HTML using blocks of elements, consisting of tags < >
~Some elements are used for describing and structuring text (e.g, <p>, <span>)
~While others are used to contain content (e.g, <div>)

HTML

anatomy of an HTML page


              <!-- /exercises/01-intro-to-html.html -->

              <!DOCTYPE html>
              <html>
                <head>
                  <title>A basic web page</title>
                </head>
                <body>
                  <div>
                    <span>Here is some text</span>
                  </div>
                </body>
              </html>

HTML

block & inline level elements

HTML

What is 'semantic' HTML?

+ Elements are named to describe their meaning and purpose e.g., <nav>, <footer>, <audio>
+ REFERENCE: Semantic HTML
+ REFERENCE: MDN Web Docs: Elements

CSS

Cascading Style Sheets

~CSS is markup language that describes the style of an HTML document
~CSS is written to apply style to elements at different levels of specificity


                    /* Elements by tag */
                    p {
                      color: #000000;
                    }

                    /* Elements by tag and class name (using the . identifier) */
                    div.content-container {
                      background: #121212;
                    }

                    /* Elements by tag and id (using the # identifier) */
                    span#my-custom-span {
                      font-family: "Apercu-Pro", sans-serif;
                      font-size: 12px;
                    }

                    /* Child elements of a specific element */
                    ul#my-custom-list > li {
                      list-style-type: none;
                    }

CSS

Inline CSS


              <!-- /exercises/02-inline-css.html -->

              <!DOCTYPE html>
              <html>
                <head>
                  <title>Inline CSS</title>
                </head>
                <body>
                <div style="background-color: #000000; padding: 20px;">
                  <p style="color: #c383f2; text-transform:uppercase; font-size: 36px;">
                    Here is my styled paragraph inside a styled div.
                  </p>
                </div>
              </body>
              </html>

CSS

Internal CSS


              <!-- /exercises/03-internal-css.html -->

              <!DOCTYPE html>
              <html>
                <head>
                  <title>Internal CSS</title>

                  <style>
                    .my-custom-div {
                      background-color: #000000;
                      padding: 20px;
                    }

                    .my-custom-paragraph {
                      color: #c383f2;
                      text-transform: uppercase;
                      font-size: 36px;
                    }
                  </style>

                </head>
                <body>
                <div class="my-custom-div">
                  <p class="my-custom-paragraph">
                    Here is my styled paragraph inside a styled div.
                  </p>
                </div>
                </body>
              </html>

CSS

External CSS


              <!-- /exercises/04-external-css.html -->

              <!DOCTYPE html>
              <html>
                <head>
                  <title>External CSS</title>
                  <link rel="stylesheet" href="../css/04-style.css">
                </head>
                <body>
                <div class="my-custom-div">
                  <p class="my-custom-paragraph">
                    Here is my styled paragraph inside a styled div.
                  </p>
                </div>
                </body>
              </html>


              /* css/04-style.css */
              .my-custom-div {
                background-color: #000000;
                padding: 20px;
              }

              .my-custom-paragraph {
                color: #c383f2;
                text-transform: uppercase;
                font-size: 36px;
              }

CSS

CSS Positioning – play around with it!


            <!-- /exercises/05-positioning.html -->

            <!DOCTYPE html>
            <html>
              <head>
                <title>CSS Positioning</title>
                <link rel="stylesheet" href="../css/05-positioning.css">
              </head>
              <body>
                <div class="first-div">Hi I'm first div!</div>
                <div class="second-div">
                  <div class="inner-div">Hi I'm the inner div!</div>
                  Hi I'm second div!
                </div>
              </body>
            </html>


              /* css/0-positioning.css */

              .first-div {
                color: #bbbbbb;
                background-color: #000000;
                width: 40vw;
                height: 40vh;
              }

              .inner-div {
                position: relative;
                background-color: #e374cd;
                width: 40%;
                height: 40%;
                left: 60%;
              }

              .second-div {
                position: relative;
                background-color: #354dc4;
                width: 40vw;
                height: 40vh;
              }

CSS Box Model

How it works

~What's up with margin & padding?
~REFERENCE: MDN Docs: The Box Model

Dev Tools: Using the Inspector

3 ways to see the inspector

~Go to any website, even these slides, and hit cmd + option + i
~Or View > Developer > Developer Tools
~Or right click in a webpage and click 'Inspect'

Dev Tools: Inspector

Try it for yourself!

~In groups, navigate to a website and make some changes
~Can you figure out how it's structured?
~Add your own creative flair!
~But remember to screenshot – if you reload, your changes disappear

Exercise I - Ode to Mondrian

/exercises/06-ode-to-mondrian.html

Exercise I - Ode to Mondrian

/exercises/06-ode-to-mondrian.html

~You can use reserved color names: red, blue, yellow, black
~Use square dimensions: width: 400px; height: 400px;
~Note: borders (e.g., border-right: 8px solid black;) increases div dimensions by default
~To prevent this, you can use box-sizing: border-box;

Exercise I - Ode to Mondrian

/exercises/06-ode-to-mondrian-solution.html

SCHEDULE CHANGE

This Saturday

Saturday 9/24, can you make 10AM-2PM?

CSS

despite how easy it may look, css is pretty powerful

MAKE ART WITH CSS

CSS

can be pretty complex, and can be used for making art

Pure CSS Francine – Diana Smith

CSS

can be pretty complex, and can be used for making art

A Single Div – Lynn Fisher

CSS

can be pretty complex, and can be used for making art

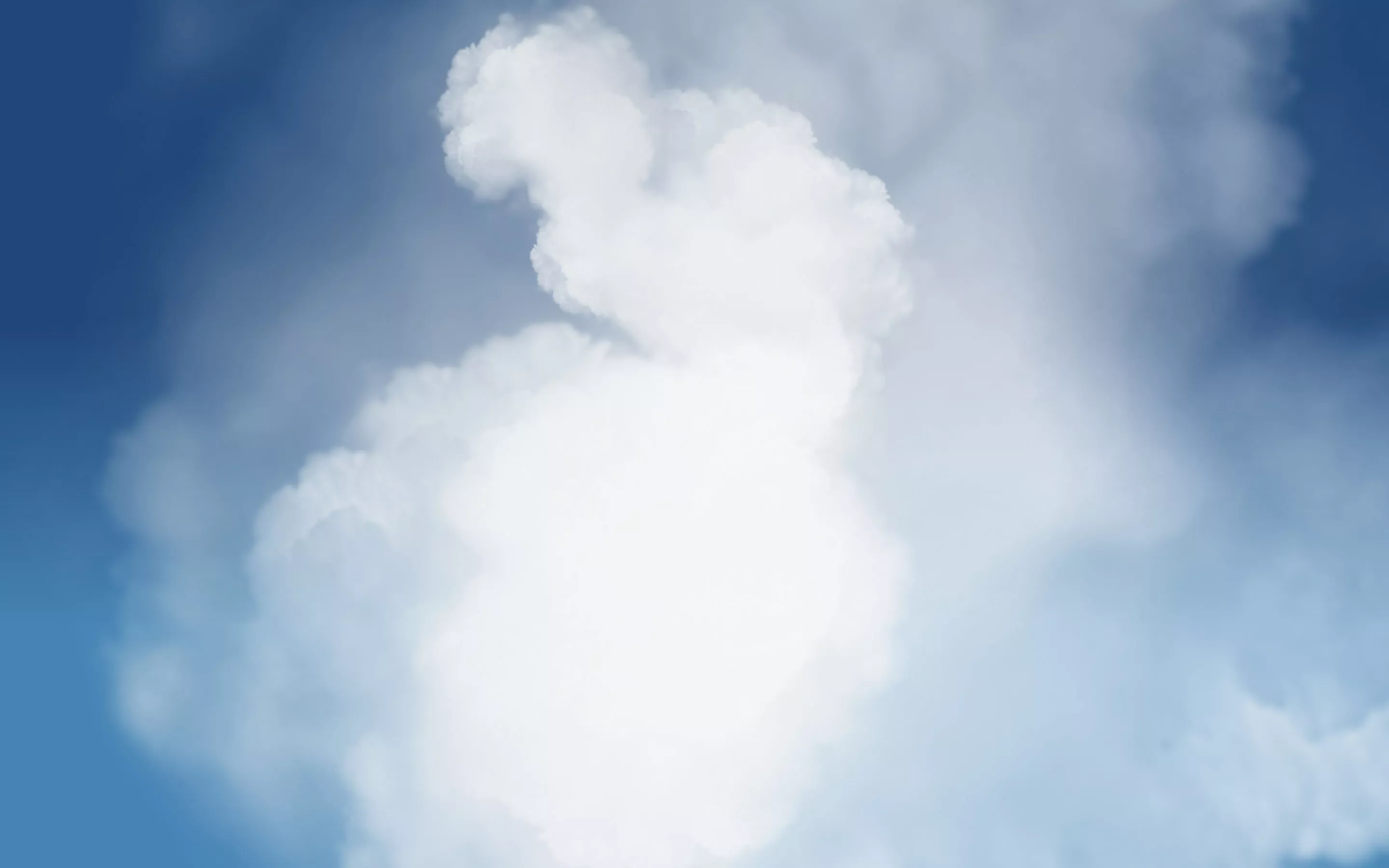

CSS 3D Clouds (used with JS)

CSS Animations

Interpolation & Easing

Easings.net

CSS Animations

Easing & Keyframing


              <div id="anim-circles-container">
                <div id="circle-1" class="anim-circle"></div>
                <div id="circle-2" class="anim-circle"></div>
                <div id="circle-3" class="anim-circle"></div>
                <div id="circle-4" class="anim-circle"></div>
                <div id="circle-5" class="anim-circle"></div>
              </div>


              div.anim-circle {
                width: 40px;
                height: 40px;
                border-radius: 50%;
                opacity: 0.7;
                position: absolute;
              }

              div#circle-1 { animation: my-animation 2s ease 0s infinite alternate; }
              div#circle-2 { animation: my-animation 2s linear 0s infinite alternate; }
              div#circle-3 { animation: my-animation 2s ease-in 0s infinite alternate; }
              div#circle-4 { animation: my-animation 2s ease-out 0s infinite alternate; }
              div#circle-5 { animation: my-animation 2s ease-in-out 0s infinite alternate; }

              @keyframes my-animation {
                0% { background: #FFA500; left: 10%; }
                100% { background: #00caff; left: 90%; }
              }

CSS Animations

Easing & Keyframing

~CodePen - How Keyframes Work
~READING (to peruse): MDN Web Docs - Animatable CSS properties
~READING (to peruse): Google Developers - The Basics of Easing

CSS

CSS 3D Transforms

Adapted from this CodePen

CSS3

CSS 3D Transforms

Adapted from this CodePen

CSS

CSS 3D Transforms

Adapted from this CodePen


              /* more css in example code */
              @keyframes roundandround {
                to { transform: rotateX(360deg) rotateY(360deg); }
              }

              .wrapper {
                transform: rotateX(45deg) rotateY(180deg);
                transform-style: preserve-3d;
              }

              .ball {
                transform-style: preserve-3d;
                animation: roundandround 4s 1.3s infinite linear;
              }

              .ball .ring {
                border: 4px;
                border-style: dotted;
                border-radius: 50%;
                opacity: 1;
                animation: show 0.75s forwards ease-in-out;
                color: #7ea6ff;
              }

              .ring:nth-child(1) {
                transform: rotateY(4deg);
                animation-delay: 0s;
              }

              .ring:nth-child(2) {
                transform: rotateY(8deg);
                animation-delay: 0.1s;
              }

A Quick Note on Colors

let's mix

Exercise II – Mondrian Again

~~~~~~

~go back to your Mondrian code, in whatever state it's in

~animate something on your sketch!
~Some fun properties that might help:

border-radius
box-shadow
transform: rotate/translate/skewx
Some other non-rectangle shapes
::before and ::after if you're feeling advanced

Exercise II – The Squiggle

~~~part 1~~~

~Take a few minutes to create and style a single div
~Start with a rectangle and a background color
~Some fun properties that might help you get weird with it:

border-radius
box-shadow
transform: rotate/translate/skewx
Some other non-rectangle shapes
::before and ::after if you're feeling advanced

Try putting it in a codepen!

Exercise II – The Squiggle

Homework if you want it

~Pass the HTML and CSS for your squiggle to a classmate

~Take a look at the squiggle you were passed, ask yourself – what else could this be?
~Turn their squiggle into a sketch! (feel free to add more divs)
~Write a short blog post with screenshots of your sketch and the original squiggle

Tell us what you did, any challenges you faced, and anything new you explored
Thank your classmate for their contribution!

"HOMEWORK"

~Watch these videos on debugging!
~Finish the squiggle sketch and post on the blog
~Make sure you have Git installed (in terminal: git --version)
~Sign up for a GitHub account if you don't have one
~Install GitHub Desktop (unless you prefer to work in command line)

3 Panel Comic / Triptych

Create a 3-panel comic or triptych using only HTML & CSS

~We will present end of class SATURDAY
~There is no word requirement, it can be purely visual
~Write a blog post: your vision, process, challenges & lessons learned

Making Art 0n The Web

Agenda

Welcome to Gray Area

💻 🎨 👾 🎹

Introductions

Housekeeping

Course Overview

Course Overview

2020.1 Showcase

2020.2 Showcase

2021.1 Showcase

Course Overview

The Internet

The Internet

The Internet

The Internet

The Internet

How do we move forward?

Environment Setup

Code

HTML

HTML

HTML

HTML

CSS

CSS

CSS

CSS

CSS

CSS Box Model

Dev Tools: Using the Inspector

Dev Tools: Inspector

Exercise I - Ode to Mondrian

Exercise I - Ode to Mondrian

Exercise I - Ode to Mondrian

SCHEDULE CHANGE

CSS

MAKE ART WITH CSS

CSS

CSS

CSS

CSS Animations

CSS Animations

CSS Animations

CSS

CSS3

CSS

A Quick Note on Colors

Exercise II – Mondrian Again

Exercise II – The Squiggle

Exercise II – The Squiggle

"HOMEWORK"

3 Panel Comic / Triptych
